Key features at a glance:
  • Perfect for commercial and industrial applications: Ideal for offices, schools, shops, pubs, restaurants, factories, hospitals, and warehouses.
  • Duty standby operation: Dual pump system provides automatic duty standby pumping protection for critical pumping applications.
  • Accurate level control: Large triangular floats with ridged float arm ensure accurate pump stop / start operation.

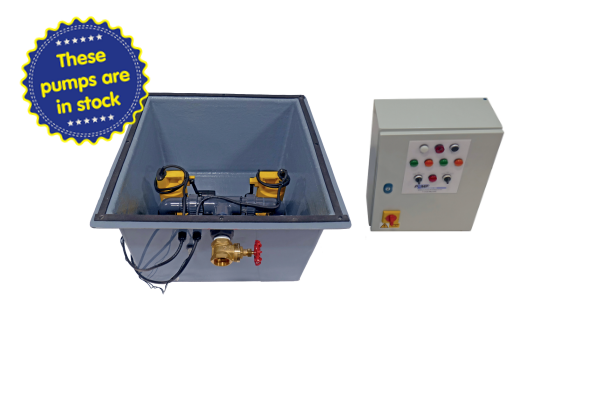

  • Advanced features: Includes a control panel for auto changeover of duty pump with high level alarm and BMS interface.
DrainKing

Detailed overview:

The DrainKing system is engineered to meet the rigorous demands of commercial and industrial environments. Whether it’s for offices, schools, shops, pubs, restaurants, factories, hospitals, or warehouses, this wastewater pumping system offers the power and dependability you need.

Why choose DrainKing?

  • Versatile and reliable: The DrainKing system is ideal for a wide range of settings, including commercial kitchens with dish/glass washers, washing machines, and cleaners sinks. It’s designed to handle very hot water and waste disposal units effortlessly, making it a robust solution for demanding environments.
  • Complete and ready to install: The DrainKing system comes fully assembled and ready to install, ensuring a hassle-free setup process. It’s quiet yet powerful, ensuring efficient operation without disturbing the surrounding environment.
  • Resistant to corrosive chemicals: Built to withstand exposure to harsh chemicals, the DrainKing system is perfect for environments where durability is crucial. Its construction ensures long-lasting performance, even in the most challenging conditions.
  • Easy maintenance and cleaning: The system’s lid design allows for easy access, simplifying cleaning and maintenance tasks. This feature helps to minimize downtime and ensures the system remains in optimal working condition.
  • Advanced control and monitoring: The DrainKing system is equipped with a control panel that includes an alarm and a BMS (Building Management System) interface, providing advanced monitoring and control capabilities. This ensures you’re always informed about the system’s status, allowing for proactive maintenance.
  • Handles extreme conditions: The DrainKing system offers an ‘H’ option for handling extremely hot water. For specifications, consult our technical department to ensure it meets your specific needs.
  • Impressive pumping capability: Capable of handling solids up to 30mm and pumping heads of up to 10 meters, the DrainKing system is powerful enough to handle the toughest drainage challenges. It supports 32, 40, or 50mm discharge pipework, providing flexibility in installation.

For businesses and industries that require a powerful, reliable, and easy-to-maintain wastewater pumping solution, the DrainKing system is the ideal choice. Its advanced features and robust construction ensure it can handle the demands of any commercial or industrial environment.

DrainKing

Matt Camille from Pump Technologies shows you the DrainKing Duo – Floor Mounted Waste water pumping system using Dual pumps.

Downloads

Frequently asked questions

What is the difference between the DrainMajor Duo and DrainKing?2021-06-23T08:29:50+00:00

Both will offer a duty standby assist pump operation. With the Duo each pump will operate independently, the pumps float arm position causing the pump to start and stop. If one pump should fail, fluid would overflow into the adjacent tank, the other pump would then be activated by its float arm. This configuration does not require a control panel. The king has both pumps in a single tank, separate floats control the operation of the pumps via a duty standby, assist control panel. The panel will also cycle the lead duty pump. Both systems are fitted with alarms with BSM connection.

How high and how far can I pump?2021-06-23T08:29:18+00:00

Depending on pump, max closed valve head is 13m, max flow rate 7.9 L/S.

What is the maximum solids sizes?2021-06-23T08:28:44+00:00

Depending on the pump, 10mm to 30mm soft solids.

What pump or pumps fit into the tank?2021-06-23T08:28:09+00:00

An automatic submersible Jung Pumpen U3K, U3K Special, U5K, U6K, US73HE /103HE and US73HES / 103HES (Rated for liquid temperatures 90 deg c)

What is the minimum inlet height?2021-06-23T08:27:38+00:00

From 110mm to 185mm, depending on the pump selected. This ensures the suction to the pump is always flooded and prevents the possibility of air locking. An inlet should be provided to both tank sections.

What material is the tank made from?2021-06-23T08:27:05+00:00

Recyclable Polyethylene. The tank is rigid, easier to drill tank connections into, and the sides of the tank are less likely to congeal with fats and grease.

How does the lid fit?2021-06-23T08:25:04+00:00

No tools are required to remove the lid. It’s held in place by 4 off stainless hand screws.  Two lids one for each tank compartment.

What size is the tank?2021-06-23T08:24:30+00:00

Rectangular, 820mm L x 410mm W, 445mm H
